Precision welding isn’t just about meeting code; it’s about hitting the same mark every time, under any condition. When you’re working in aerospace, power generation, shipbuilding, or any other high-spec industry, there’s no room for inconsistency. That’s why AMI orbital welding systems are such a game-changer.
Unlocking the precision and productivity power of AMI means understanding how to fine-tune your settings, read your feedback data, and dial in your prep work. This blog isn’t about selling you on the machine; it’s about showing you how experienced operators use these systems to make every weld count.
Optimize Weld Schedules
Your weld schedule is your roadmap, and a generic one won’t take you very far. AMI systems come with default schedules, but these are only a starting point.
You’ll want to customize the amperage, pulse frequency, background current, and travel speed to match your specific joint design and base material and achieve precise results. For example, you can prevent overheating and distortion with thinner stainless tubing, a lower heat input, and tighter pulse control.
One often overlooked detail is the balance between travel speed and dwell time. Slower travel may improve fusion on thick-wall pipe, but it can also risk burn-through on thinner sections if you don’t offset it with appropriate pulsing.
Always test your settings on scrap before moving to production.
Nail Fit-Up and Alignment
Even the best orbital welding system can’t fix a bad fit-up. Precision starts before you turn on the machine, which requires clean, burr-free pipe ends, consistent land, and alignment within tight tolerances—ideally no more than 1/32 of an inch of mismatch.
Employ high-quality clamps or internal line-up tools to hold everything in place. A small misalignment can throw off bead symmetry and arc stability, leading to inconsistent penetration or excessive reinforcement.
Alignment is critical for maintaining arc centering when using AMI weld heads, particularly closed-chamber types used in GTAW. Inconsistent high/low at the joint affects the torch angle and can result in a lack of fusion.
Take the time to prep properly, and always dry-fit components to check for gaps or rotational misalignment before initiating the weld. Think of alignment as your foundation; get it wrong, and everything else starts to wobble.

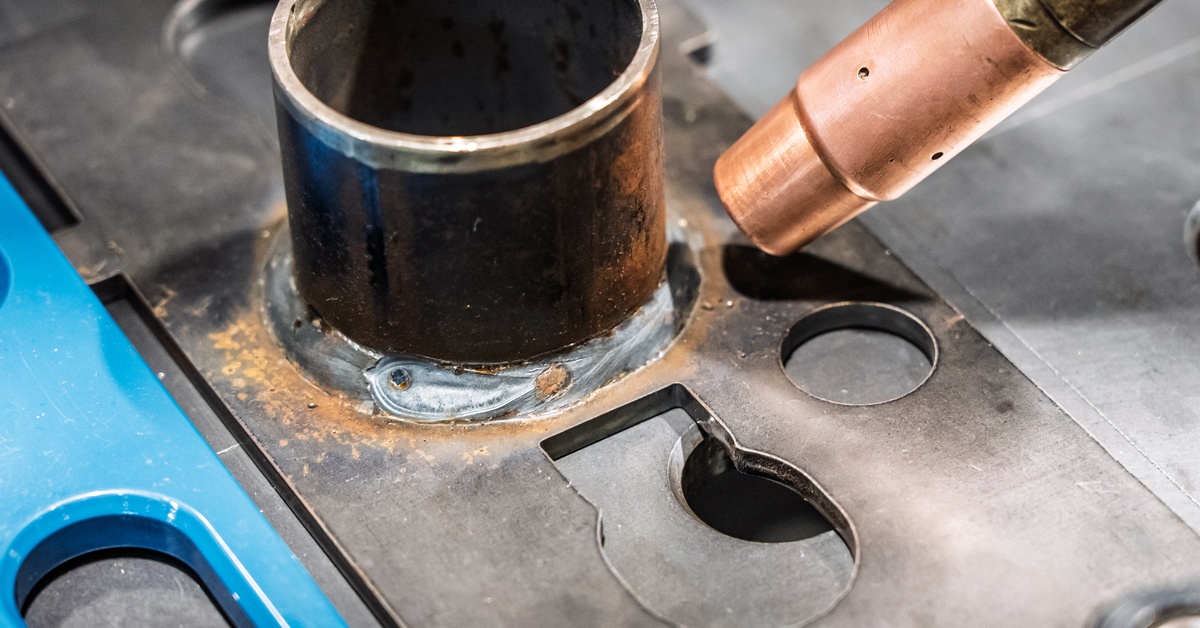

Master Weld Head Settings
The weld head is where most of your control—and risk—lives. Start with your arc gap. Use AMI’s touchscreen interface to adjust the tungsten standoff distance precisely; if it’s too close, you risk contamination, and if it’s too far, arc stability drops.
You should match the arc gap settings to electrode size and joint geometry. A typical setup might call for a 1/16 inch tungsten with a 0.040 inch gap, but always consult your procedure and material requirements.
Rotational speed is another dial that gives you real control. Slower speeds can improve fusion on heavy-wall materials, while higher RPMs may be best for lighter pipes where you must minimize heat input.

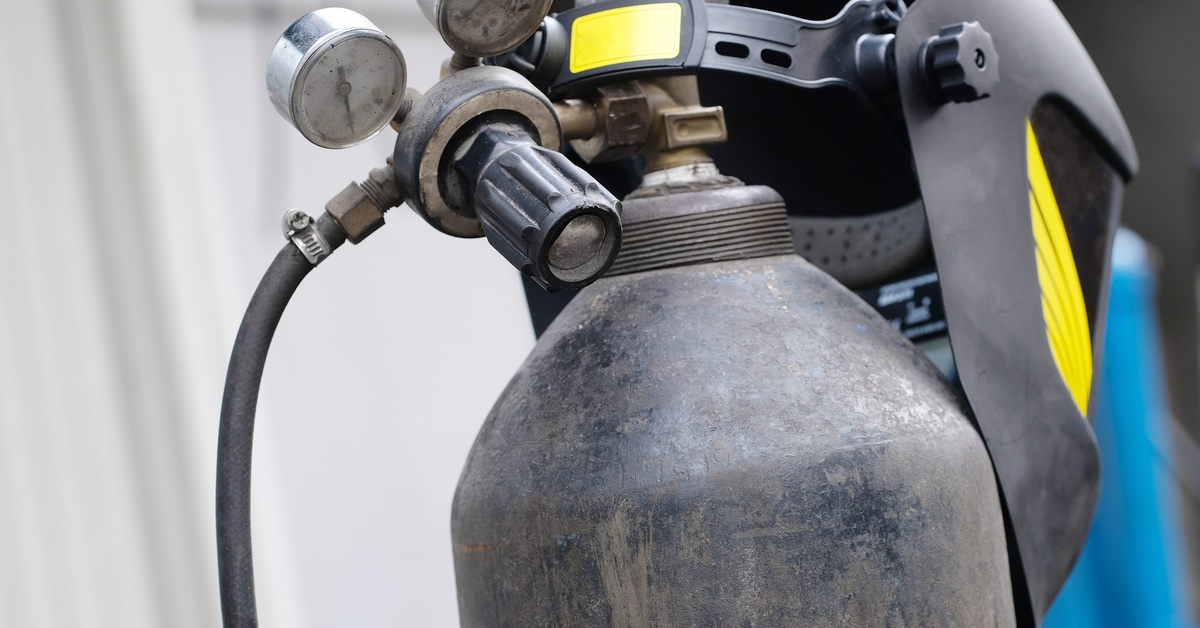

Don’t Forget Gas Coverage
Shielding gas plays a critical role in weld quality, especially with AMI orbital GTAW systems. For most applications, set argon flow between 15–20 CFH (cubic feet per hour) for open-head welding and 10–15 CFH for enclosed weld heads, though these numbers can vary based on joint configuration and environmental conditions. Too much flow creates turbulence and introduces oxygen into the arc zone.
You should perform maintenance of gas delivery systems daily before use. Inspect hoses for leaks or kinks, confirm flow rates with a calibrated flow meter, and clean or replace diffusers and nozzles weekly to prevent contamination.
Shielding gas turbulence is one of the most preventable causes of porosity. Routine checks are your first line of defense.
Fine-Tune Shielding Gas Selection
The type of shielding gas you use directly affects weld quality and precision. Pure argon is the best choice for most stainless steel and nickel alloys, offering stable arcs and clean welds. However, adding small amounts of helium (up to 25%) can increase heat input and improve bead wetting on thicker sections, speeding up welding without sacrificing quality.
However, helium-rich mixes can maintain arc stability and reduce oxidation if you’re using aluminum or copper alloys. Machinists should consult AMI guidelines or procedure specifications for gas mixes and test and adjust based on joint configuration and environmental factors.
Remember that switching gas mixtures requires recalibrating flow rates and possibly tweaking weld schedules to maintain optimal shielding and prevent porosity.
Use Programmable Memory Profiles
One of the most powerful features of AMI orbital welding systems is the ability to store and recall weld profiles. Once you’ve dialed in the parameters for a specific joint—whether it’s 316L stainless steel, titanium, or Inconel—you can save the entire weld schedule to memory.
These profiles are exceptionally useful for multi-pass welds or repetitive projects where consistency is critical. Label profiles clearly by material type, wall thickness, and schedule (e.g., “SS-1.5mm-Sched10”) so you’re not guessing in the field.
Preset profiles reduce setup time and ensure repeatability when switching between joint types or materials. Operators should review and update stored profiles monthly based on QA feedback or performance logs.
Don’t just save and forget them—treat them like living documents. Over time, this practice builds a personal or team-based knowledge bank, which helps standardize results across shifts and projects.
Monitor and Adjust in Real Time
Programmed welds benefit from real-time monitoring. AMI’s controller interfaces provide live readouts of arc voltage, current, rotational speed, and travel rate. Operators should watch for subtle changes, such as voltage drift or inconsistent arc length, as they can affect bead profile and penetration.
Most issues don’t require a full reset; small adjustments to arc voltage or gas flow mid-weld can correct the course before a defect forms. Use the system’s data logging features to capture performance for each weld.
Following completion, review these logs in conjunction with visual inspections and QA data to identify patterns, such as gas flow inconsistencies, heat input issues, or recurring fit-up errors. This information is invaluable for refining stored profiles and avoiding repeated mistakes.
Turn Performance Into Advantage
An automated welding machine isn’t just a tool for speed; it’s a system designed to eliminate human variation and lock in repeatable quality. You’re not just operating equipment when you understand how to fine-tune your weld schedules, master fit-up, and trust your automated system; you’re unlocking the precision and productivity power of AMI.
