Welding Lathes
Precision Rotation. Repeatable Results.

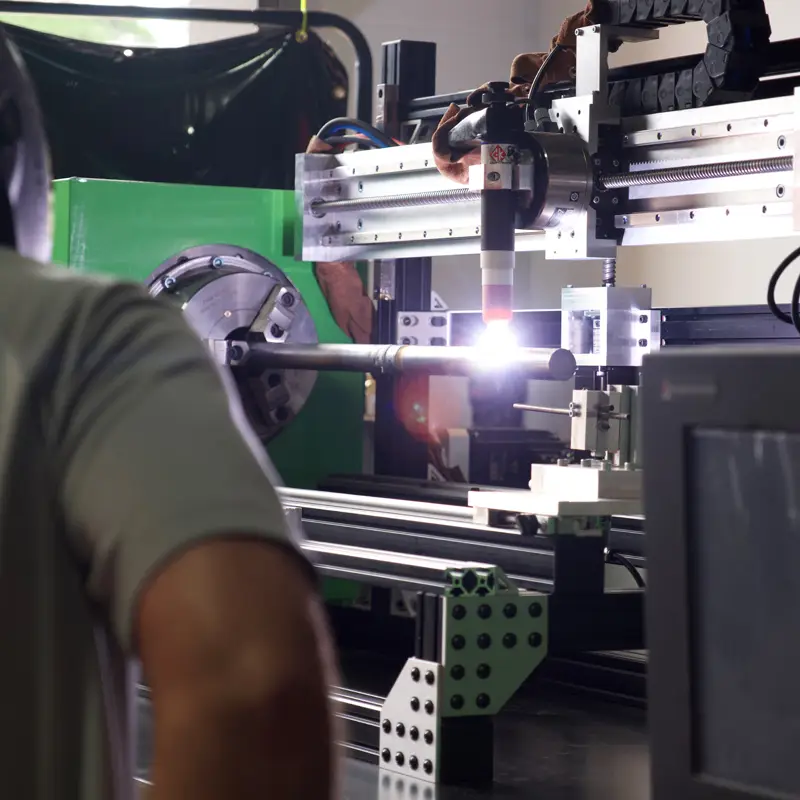

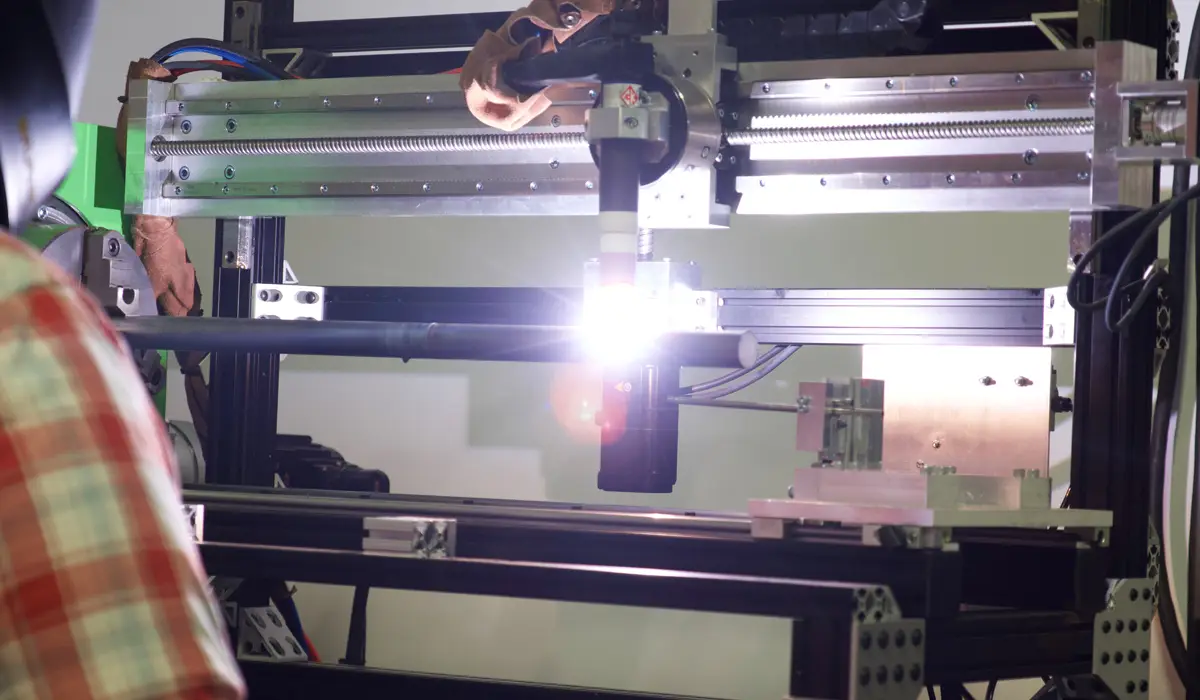

M3-WL03 Precision Welding Lathe
The M3-WL03 Precision Weld Lathe is an easy-to-use, servo-driven welding lathe machine that will maximize the operator’s productivity while improving the quality and consistency of each welding operation.
Built for the Tough Jobs
Engineered for precision, repeatability, and ease of use, the M3-WL03 is a high-performance servo-driven welding lathe built for demanding orbital applications. Its flexible, modular design supports a wide range of welding operations while ensuring long-term serviceability and straightforward maintenance.
Powered by a single-point, 3-phase 208-amp distribution system, the M3-WL03 eliminates the need for external programming or software. A user-friendly PLC-controlled touchscreen puts full control in the operator’s hands, making complex welds easy to manage and configure.
The system also enables real-time weld data logging for every operation—ensuring traceability, quality control, and process integrity. With optional custom fixturing available from SEC Industrial, the M3-WL03 can adapt to even the most specialized welding applications.
Headstock Rotation
The headstock rotation can be programmed to rotate to allow the weld head to access the entire diameter of the pipe or tube. The rotation speed and direction can be changed using the M3-WL03 program.
AVC Travel
The Z-axis travel provides servo driven AVC control to maintain the torch offset position relative to the weld joint. With over 5 inches of vertical motion, the system allows for a wide range of pipe sizes to be welded.
X-Axis Travel
Precision linear guide rails combined with precision ball screw allow the weld head to move along the length of the pipe or tube. In addition to standard travel along the pipe length, the servo driven X-axis travel allows the weld head to oscillate across a weld joint. The oscillation length and speed can be adjusted using the weld lathe’s touch screen.
Wire Feed
With constant wire feeding, the cold-wire feeder included in the M3-WL03 allows for all weld passes in a single operation to be performed under a single arc, increasing arc-on time and productivity. The wire speed can be adjusted using the M3-WL03 program.
